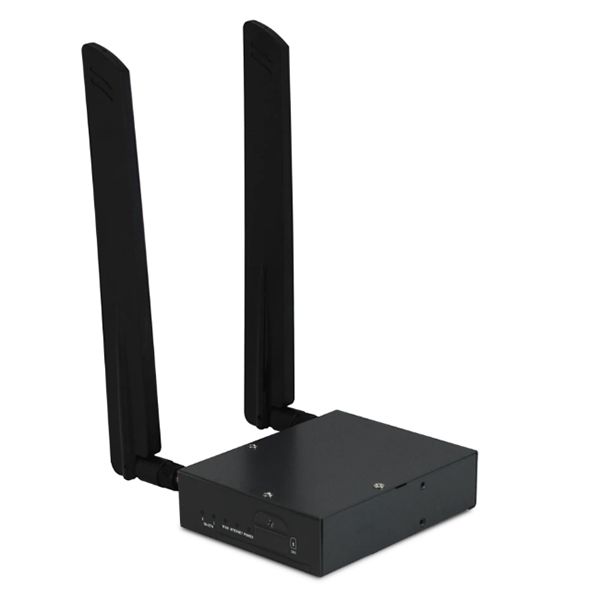

M150
先進工業型 LTE 路由器
Billion M150 是一款高規格 LTE 工業級路由器，具有可靠性和安全性的優點。可為您現有的串行設備提供即時數據連接，為固定/移動無線通訊應用提供了可靠且高效的解決方案。
概覽
堅固耐用工業級規格設計
Billion M150是專為嚴苛工業環境所設計的寬頻通訊設備。擁有堅固金屬外殼，可 在攝氏溫度 -20到60度(華氏-4到140度)的環境下運作，可接受的輸入直流 電壓為 9V至56V。輕巧和薄型設計提供高度靈活的安裝選項，適用於各種 環境與應用。以及多項企業級功能，例如：虛擬專用 網(VPN)、防火牆(Firewall)、自動故障轉移(Failover/Failback)、服務質量（QoS）等，提供安全可靠的網路通訊連接。
高可用性和網絡彈性
Billion M150 內建 LTE WAN 口，提供兩個 Gigabit 乙太網路埠和一個 RS-232/ RS-485 串行接口，可提供 LTE 無線數據連接。智能軟件支持 可配置的 Gigabit LAN/WAN 選項以及多項企業級功能，例如：虛擬專用 網(VPN)，防火牆(Firewall)，自動故障轉移(Failover/Failback)等，提供無 與倫比的安全穩固運行力。
規格 Specification
◼Availability and Resilience
• Dual-WAN Interfaces (4G/LTE, GbE WAN)
◼Embedded 4G/LTE
• Embedded high performance 4G/LTE module
• Frequency bands and data rare depend on
equipped LTE module
◼Network Protocols and Features
• Dual WAN Failover/ Failback
• Dual WAN Load Balancing
• IPv4, IPv6, IPv4/IPv6 dual stack
• Dual APN
• Keep Alive
• IP Pass-Through
• NAT, Virtual Server and DMZ
• Static Routing, Dynamic Routing (RIP v1/v2,
OSPF, BGP)
• SNTP, DNS relay and DDNS
• Universal Plug and Play (UPnP) compliant
• Supports DHCP server/ client/ relay
◼Firewall
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack,
Ping of Death, etc.
• Access Control
• IP Filtering, MAC Filtering, URL Filtering
• VPN Pass-through
◼Virtual Private Network (VPN)
• IPSec
• PPTP
• L2TP
• GRE
• OpenVPN
◼Serial Port (RS-232 / RS-485)
• DB-9 female
• RS-232 / RS-485
• Modbus/TCP, Telnet Server, SSH Server,
UDP Server/ Client, TCP Server/ Client
◼Global Navigation Satellite System(GNSS)
• GPS (and/or GLONASS) system
◼Management
• Password protection for system management
• Web-based GUI for remote and local
management
• Firmware upgrades and configuration data
upload and download via Web-based GUI
• TR-069 (CWMP), SNMP
• Cellular data usage allowance
• Remote System Log monitoring
• Scheduling Auto-Reboot
• Physical layer/protocol diagnostic test tool
◼Hardware Specifications
Physical Interface
• WAN: 4G/LTE (and/or ETH WAN option)
• Serial Port(DB-9 female): one(1) port
• Ethernet LAN: 2-port 10/100/1000Mbps
auto-crossover (MDI/ MDI-X) switch
• SIM Card: one(1) slot
• Reset Button
• Power Connector: 2-pin connector
• LED Indicators
• Antenna:
• 4G/LTE: two(2) detachable antennas
• GPS: one(1) detachable antenna
◼Power Specifications
• Input: DC 9V~56V
◼Physical Specifications
• Dimensions: 109.3 x 85.7 x 28.9 mm
◼Operating Requirements
• Operating: -20°C to 60°C
• Humidity: 20 ~ 95% non-condensing
WAN Interface
| LTE | ● |
|---|---|
| Ethernet WAN | ● GbE |
Hardware Interface
| SIM slot | ● (x1) |
|---|---|
| Gigabit Ethernet | ● (RJ45 x2)(Configurable EWAN x1) |
| GPS | ● (Optional) |
| Serial port (RS-232/RS-485) | ● (DB9 x1) |
Features
| VPN | ● |
|---|---|
| IPv4 / IPv6 | ● |
| Dual WAN (Failover/Failback) | ● |
| Dual WAN (Load Balance) | ● |
| Dual APNs | ● |
| Dual firmware images | ● |
| Metal casing | ● |
Hardware Specifications
| Physical Specifications | 4.29"(W) x 1.17"(H) x 3.43"(D)(109mm x 29.7 mm x 87 mm) |
|---|---|
| Power Requirements | DC input steady state voltage range: 9V~56VDC |
| power consumption | Max.: 5W |
| Operating Environment | -20°C ~ 60 °C |
| Humidity | 20% - 95% non-condensing |
*本產品規格內容如有變更，恕不另行通知

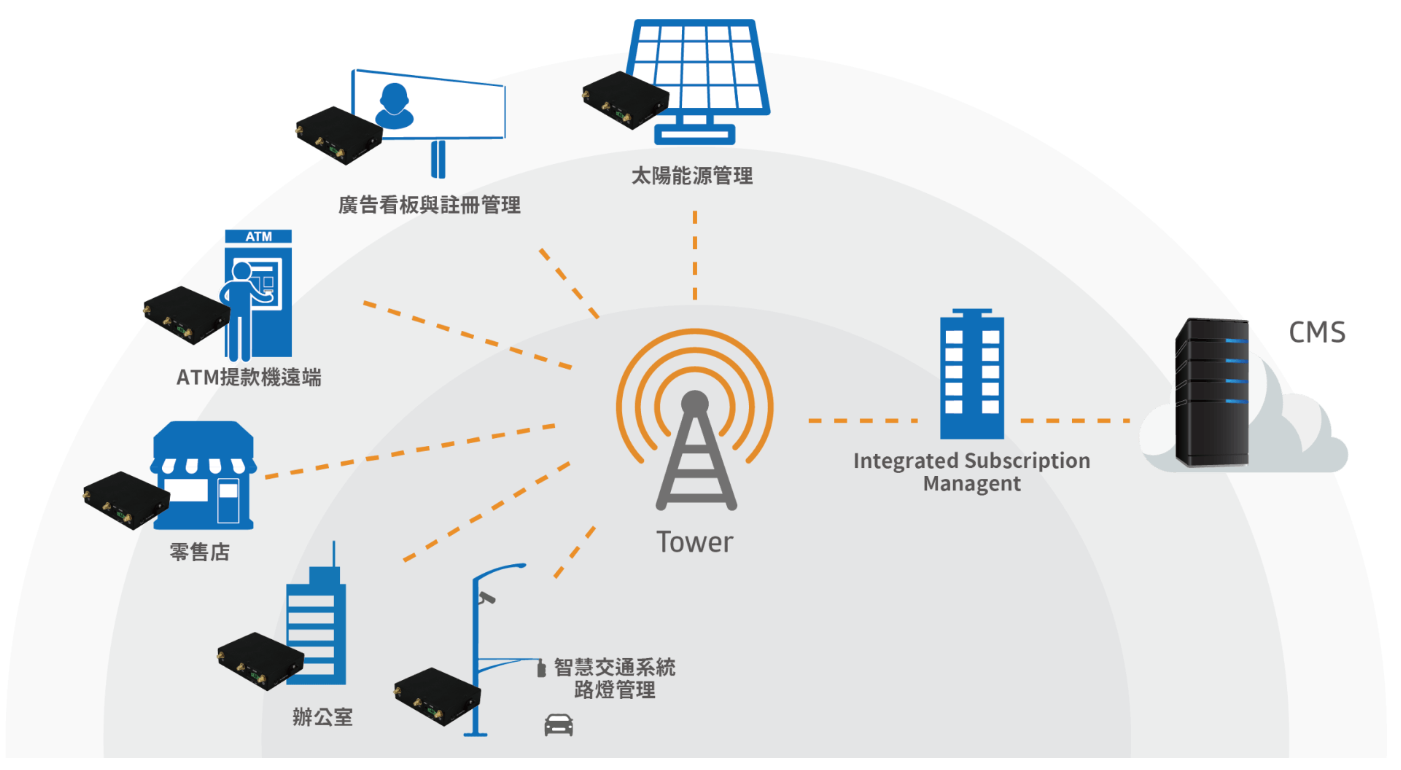

應用

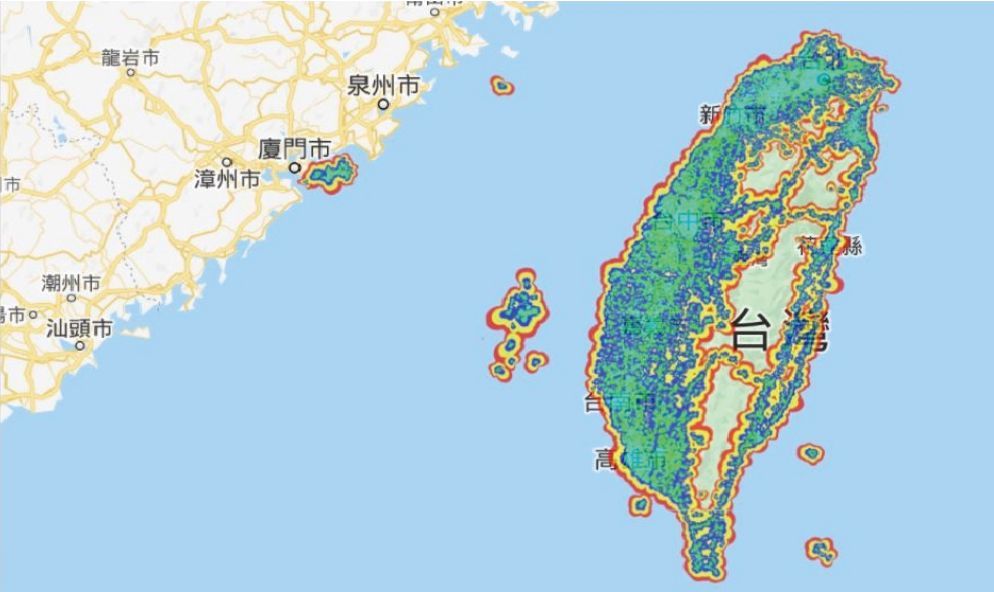

行動寬頻系統覆蓋率 (紅色範圍內)
-
![]()
